MANHICOOL SQ40 Series: Precision Engineered Aluminum Cold Plates
Advanced IGBT cooling plates and SiC semiconductor cooling solutions for high-power inverters and converters. Optimize heat dissipation in industrial electronics and power conversion systems
High-Performance Thermal Management for Compact Systems

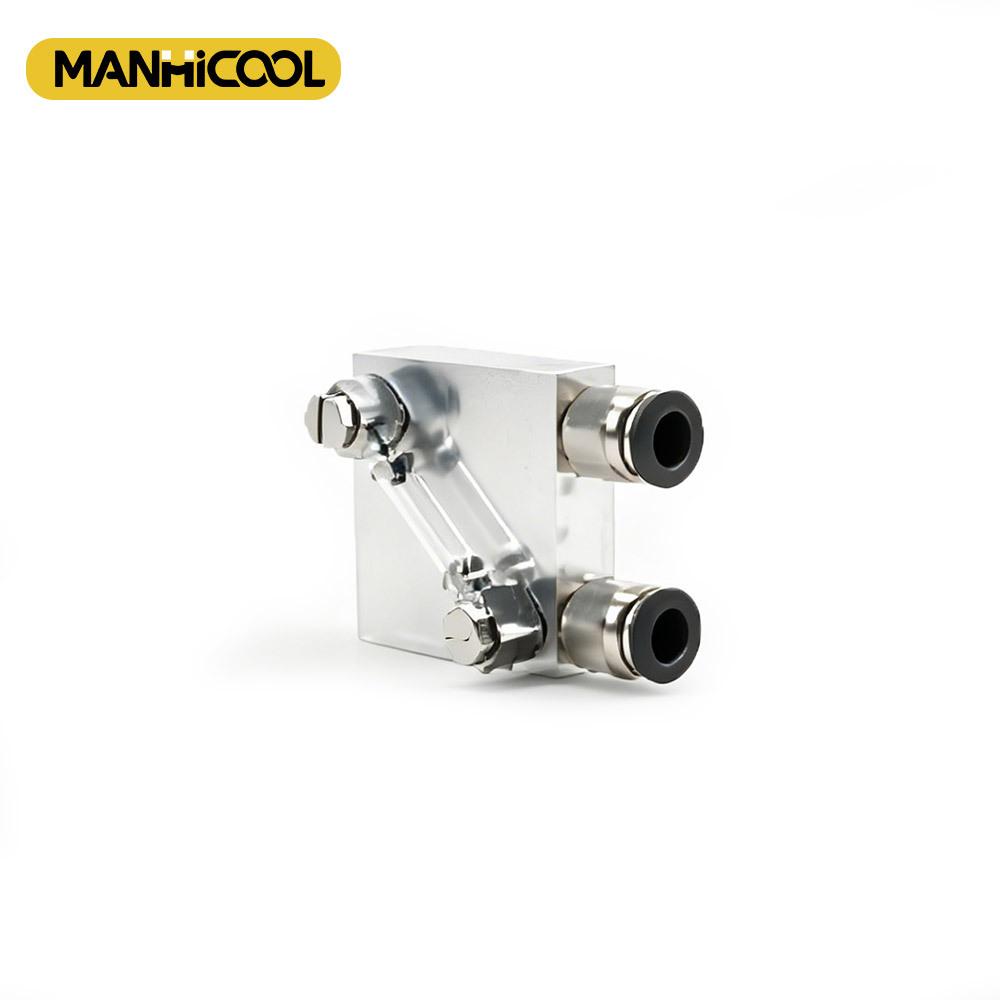

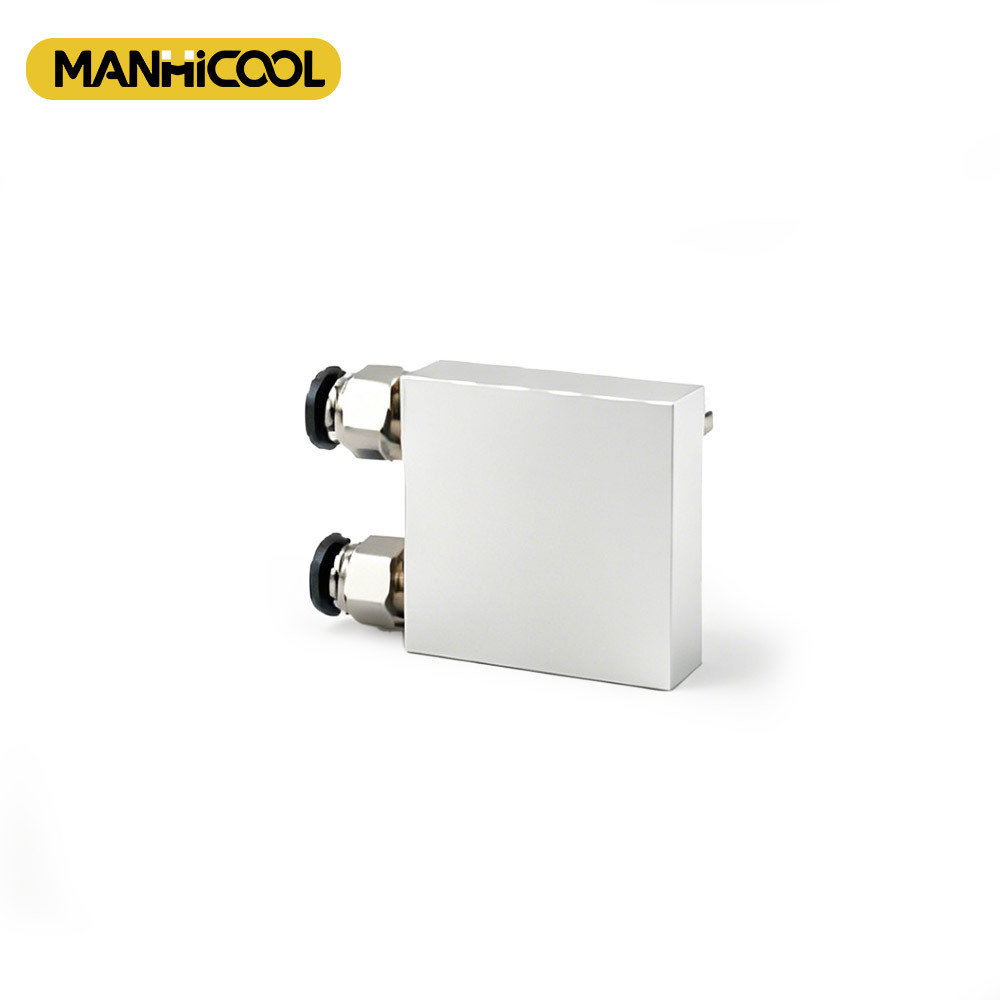

The MANHICOOL SQ40-PL6 (40x40x12mm) is more than just a cooling block; it is a precision-engineered thermal component designed for critical environments.
By combining high-grade aluminum alloy with advanced CNC machining, we provide a lightweight yet robust solution for power electronics, medical sensors, and high-density compute modules.
Application Scenarios: Powering Global Innovation
Our bespoke liquid cooling solutions are deployed across the most demanding industries worldwide:
- AI & High-Performance Computing (HPC): Cooling for next-generation GPUs, TPUs, and high-density server racks. Our cold plates are essential for 24/7 AI model training and data processing.
- New Energy & Electric Vehicles (EV): Providing thermal management for EV battery packs, fast-charging station power modules, and onboard chargers (OBC).
- Medical Diagnostic Equipment: Precision temperature control for high-power MRI, CT scanners, and surgical laser systems where zero-leak reliability is mandatory.
- Industrial Lasers & Semiconductor: Managing the thermal flux of fiber lasers, CO2 laser heads, and semiconductor automated test equipment (ATE).
Core Technical Specifications:

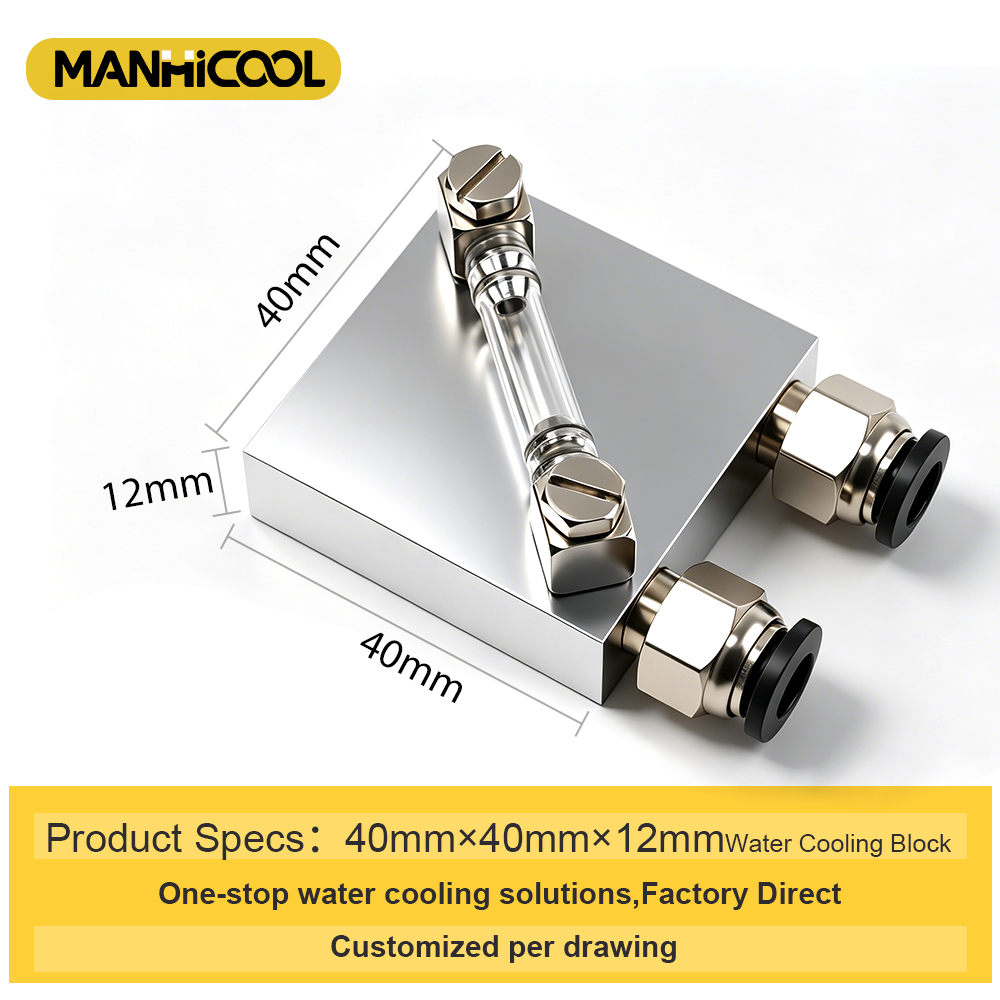

- Dimensions: 40mm x 40mm x 12.0mm (Customizable)
- Material: High-Thermal Conductivity Aluminum Alloy
- Surface Flatness: ≤ 0.05 mm (Ensures perfect contact with heat sources)
- Internal Structure: High-Density Precision CNC Machined Flow Paths
- Pressure Rating: 100% Pressure Tested up to 10 Bar
- Finish: Anti-oxidation / Clear or Black Anodizing (Optional)
The MANHICOOL Advantage (Direct from Factory):
- Engineering & DfM Support: Unlike resellers, our engineers review your CAD/Step drawings to optimize flow rates and thermal resistance before production.
- Corrosion-Free Performance: We utilize specialized internal treatments to ensure long-term reliability when used with common coolants (Water/Glycol).
- Rapid Prototyping: We understand the speed of R&D. Get your custom-spec prototypes in record time with no minimum order quantity (MOQ) for initial samples.
- Integrated Leak-Proof Guarantee: Every unit is vacuum and pressure tested in our ISO-standard facility, providing a zero-leak guarantee for your high-value equipment.
Customization Options (OEM/ODM):
We specialize in bespoke manufacturing. Send us your blueprints for:
- Bespoke Geometry: Square, Rectangular, or complex Irregular shapes.
- Interface Selection: NPT, G-thread, or custom barbed fittings.
- Application Optimized: Tailored for AI Computing, Electric Vehicle (EV) Controllers, Medical Lasers, and Semiconductor Testing.
