In an era where Artificial Intelligence (AI), High-Performance Computing (HPC), and Electric Vehicle (EV) infrastructure are pushing hardware to its physical limits, heat has become the ultimate bottleneck. The MANHICOOL SQ-1616 Series is not just a cooling component; it is a precision-engineered thermal management asset designed to handle extreme heat flux densities in large-scale industrial environments.

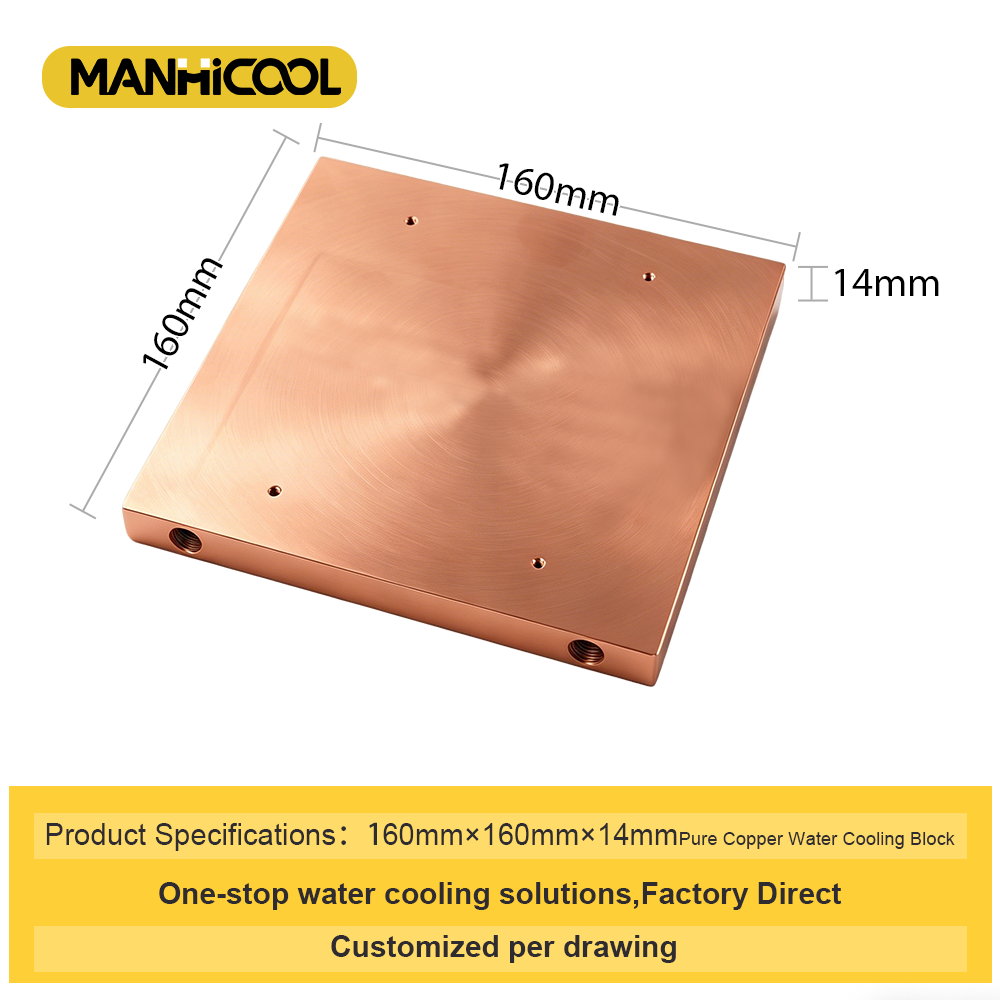

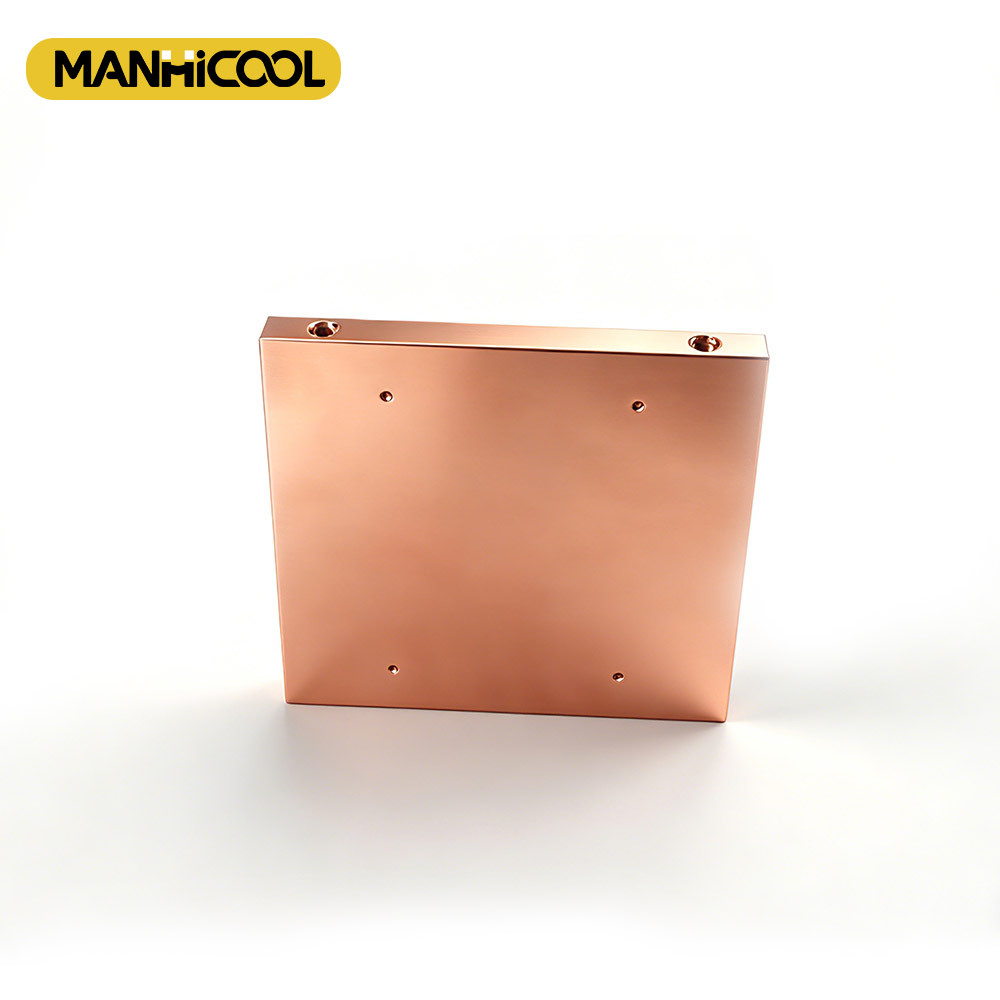

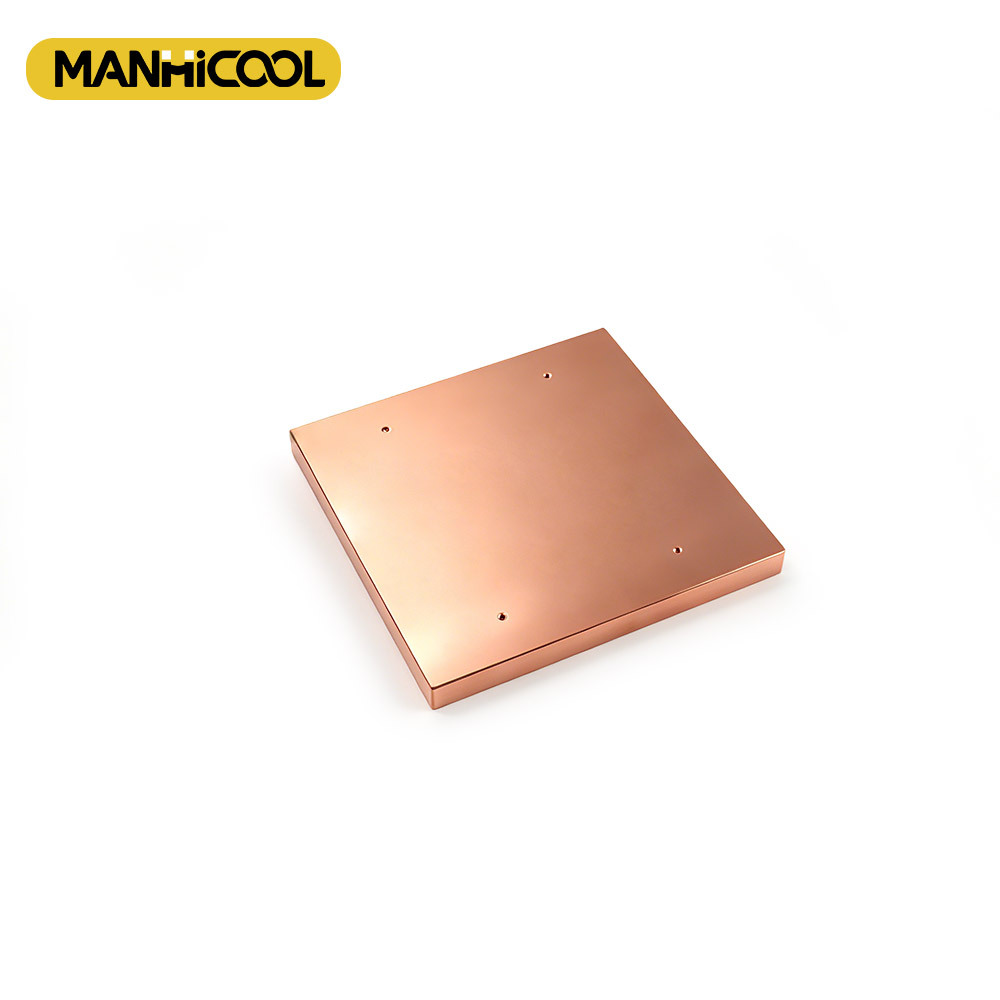

Hebei Manhang Machinery Equipment Co., Ltd. (MANHICOOL) delivers these large-format copper liquid cold plates to solve the complex cooling challenges of modern power electronics. Our SQ-1616 series, measuring a substantial 160mm x 160mm, provides a massive thermal exchange surface, making it the preferred choice for mission-critical applications where reliability and heat dissipation efficiency are non-negotiable.

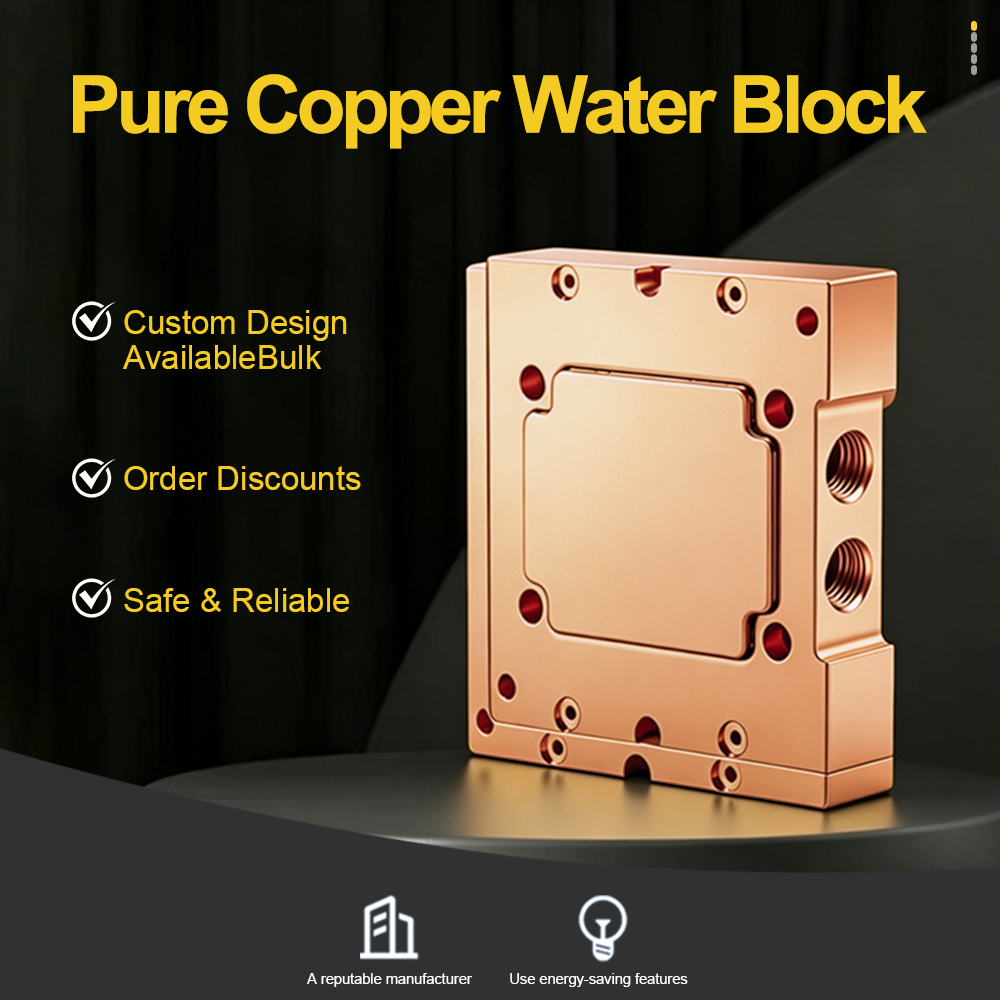

The foundation of the SQ-1616’s performance lies in its material composition. At MANHICOOL, we utilize only the highest grade C1100 High-Purity Red Copper (Oxygen-Free Copper) for our professional-series water blocks.
The most critical aspect of the SQ-1616 copper cold plate is how it is assembled. We employ aerospace-grade Vacuum Brazing (Vacuum Welding) technology to ensure structural perfection.
Unlike traditional soldering or epoxy bonding, vacuum brazing occurs in a high-vacuum, high-temperature furnace. This environment facilitates a 100% metallurgical bond between the copper base and the cover.
The internal flow path of the SQ-1616 is a masterpiece of CNC engineering. We don't just mill a path; we design a thermal maze.
Our large-format liquid cooling solutions are deployed in the most demanding sectors globally:
Modern AI server racks generate unprecedented heat. The SQ-1616 is designed to cool large GPU and TPU arrays, ensuring that high-density computing clusters can run 24/7 without thermal throttling.
In the world of Electric Vehicles (EV), fast-charging stations and battery management systems (BMS) require high-power thermal management. Our copper cold plates provide the stability needed for high-voltage DC chargers and high-capacity battery packs.
MRI, CT, and high-power medical laser systems require silent, zero-leak cooling. The SQ-1616’s vacuum-brazed integrity provides the security needed for high-value medical environments.
From high-power frequency converters to fiber laser heads, the SQ-1616 manages the thermal flux of industrial-grade equipment, preventing downtime and extending component life.
When evaluating liquid cold plate manufacturers, the differences are in the details.
Direct Manufacturer Pricing: As a source factory in Hebei, China, we eliminate the middleman, providing premium B2B thermal solutions at a significantly lower cost than Western resellers.Q1: Why is the SQ-1616 size specifically 160x160mm? A: This size was developed to accommodate large-format industrial power modules and multi-chip AI arrays. However, as a bespoke thermal solution provider, we can adjust these dimensions to your specific spatial requirements.
Q2: Does the copper water block require special maintenance? A: Thanks to the high purity of C1100 copper and our vacuum brazing process, maintenance is minimal. We recommend using high-quality coolants with corrosion inhibitors to ensure the longest possible service life in your liquid loop.
Q3: Can I choose a different surface finish, like Nickel Plating? A: Yes. We offer various surface treatments. Nickel Plating is highly recommended for industrial environments to prevent oxidation and provide an extra layer of protection against galvanic corrosion.
Q4: How do you verify the quality of each cooling plate? A: Every MANHICOOL product undergoes a multi-stage inspection: Dimensional check by CMM, 10-Bar pressure test, and a final surface flatness verification. We provide full quality reports upon request.
Q5: What is the lead time for custom non-standard designs? A: For non-standard bespoke liquid cold plates, prototypes typically take 5-10 days. Mass production timelines depend on the complexity and volume, but our factory's large-scale CNC capacity ensures industry-leading speed.
Q6: Are these plates compatible with G1/4 and G1/8 industrial fittings? A: Yes. We can machine precision threads for G1/4, G1/8, or NPT interfaces. We also offer custom barbed or quick-connect fittings based on your system's plumbing.

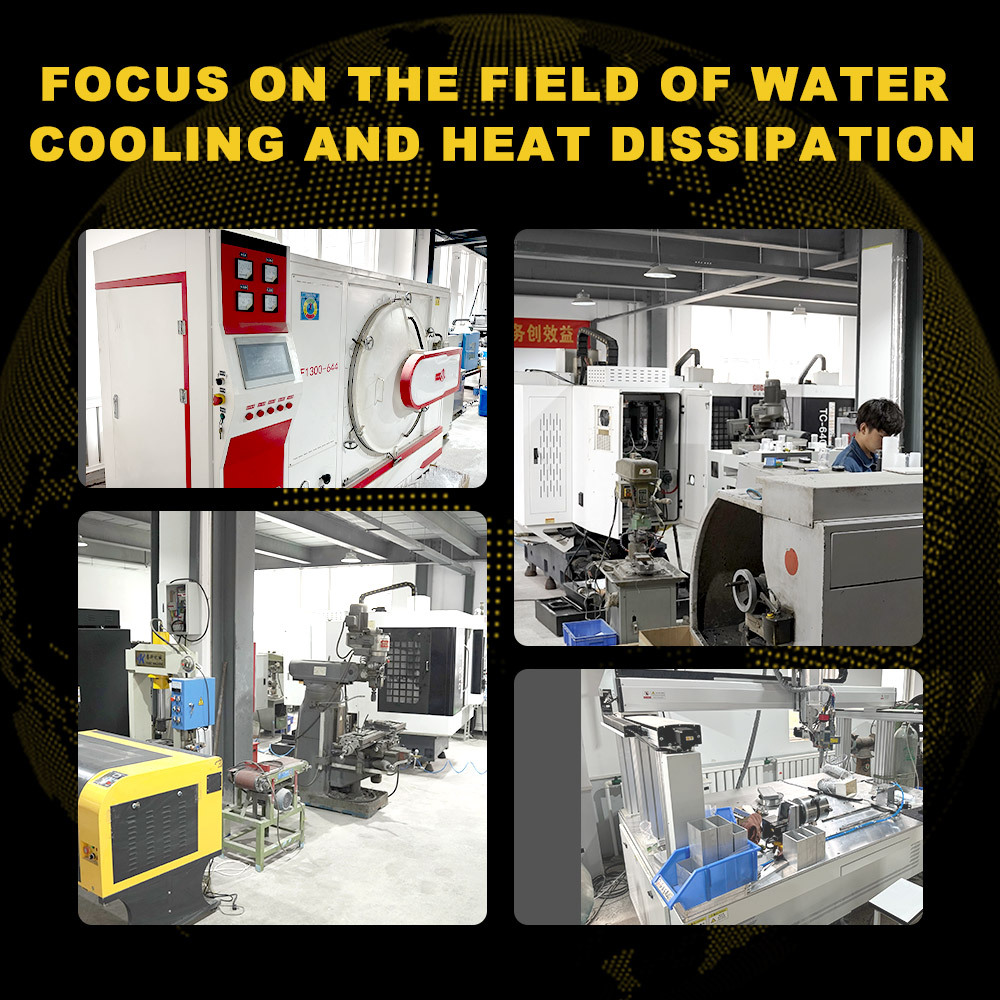

Hebei Manhang Machinery Equipment Co., Ltd. is more than a factory; we are a specialized R&D and manufacturing hub for high-end thermal technologies. With years of experience in the liquid cooling industry, we have mastered the art of vacuum brazing and skived-fin manufacturing.
Our commitment is simple: providing global partners with the most reliable, efficient, and cost-effective thermal solutions. Whether you are a startup in the green energy sector or a global leader in high-performance computing, MANHICOOL has the engineering expertise to turn your thermal challenges into competitive advantages.
Investing in a high-quality liquid cold plate is an investment in the longevity and reliability of your entire system. The MANHICOOL SQ-1616 Series offers the perfect blend of material superiority and manufacturing precision.
Our global logistics network ensures that our hardware reaches your facility in North America, Europe, or Asia securely and on schedule. To move forward with your custom project, simply share your technical requirements or drawings with our engineering team for a comprehensive technical review and proposal.
