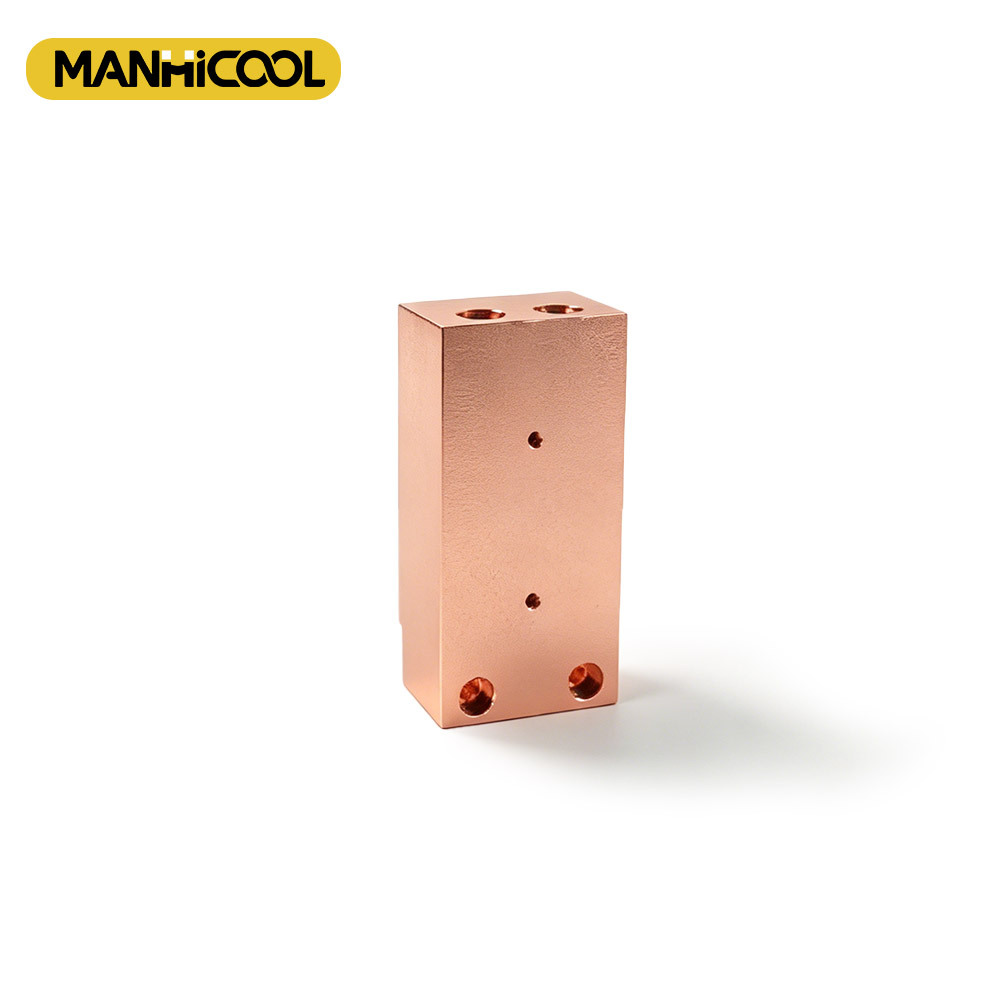

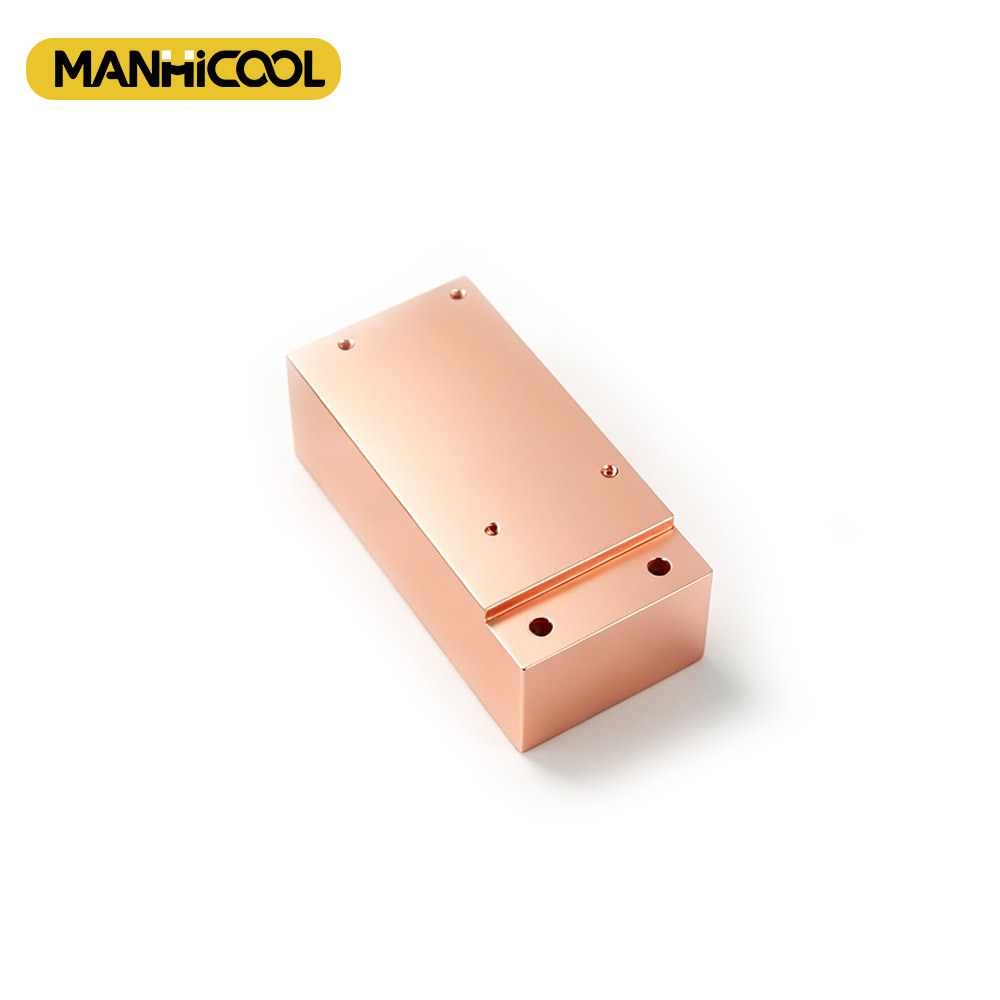

MANHICOOL RE-10249 Copper Water Cooling Plate Factory

1. Introduction: Solving the Thermal Bottlenecks of Modern Computing

In the rapidly evolving landscape of high-performance computing (HPC) and artificial intelligence (AI), thermal management has become the primary constraint for hardware performance. Standard cooling solutions often fail when faced with high-heat flux densities. Hebei Manhang Machinery Equipment Co., Ltd. delivers the solution: our Custom Copper Liquid Water Cooling Plates.

Engineered for reliability and maximum thermal flux, our plates act as the silent heartbeat of mission-critical systems. Whether you are managing the thermal load of an AI server rack, a medical MRI system, or a high-capacity EV battery pack, our integrated copper cold plates ensure that your technology operates at its theoretical peak without the risk of thermal throttling.

2. Material Excellence: Why C1100 High-Purity Red Copper?

The foundation of any superior liquid cold plate is the material. At MANHICOOL, we exclusively source premium C1100 High-Purity Red Copper (Oxygen-Free Copper) for our professional-grade series.

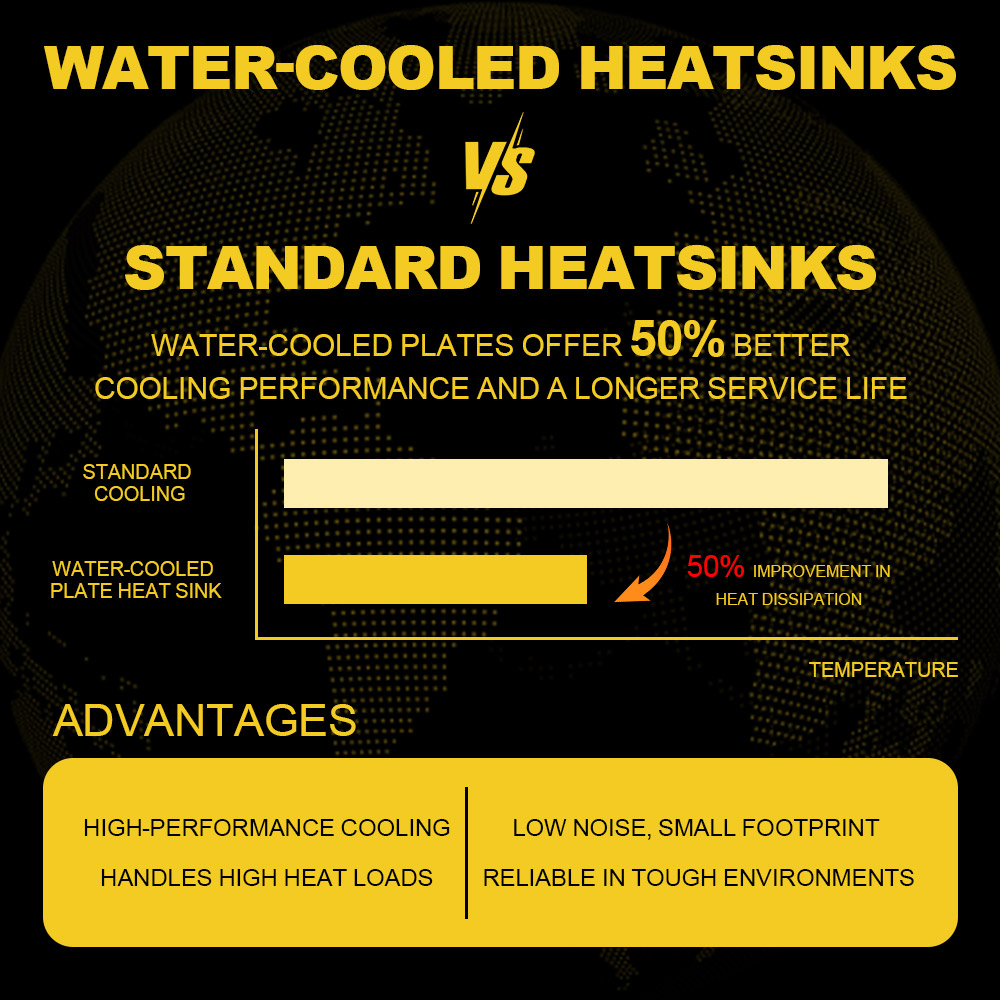

• Unrivaled Thermal Conductivity: With a thermal conductivity rating exceeding 390+ W/m·K, C1100 copper is the gold standard for heat transfer. It pulls heat away from critical components 50% more effectively than traditional aluminum alloys.
• Corrosion Resistance & Longevity: Our high-purity copper is naturally resistant to the internal corrosion often caused by coolants (water/glycol mixtures), ensuring a decades-long lifespan for industrial installations.
• Structural Integrity: Copper provides the necessary thermal expansion compatibility with silicon-based components, reducing mechanical stress during high-temperature cycling.

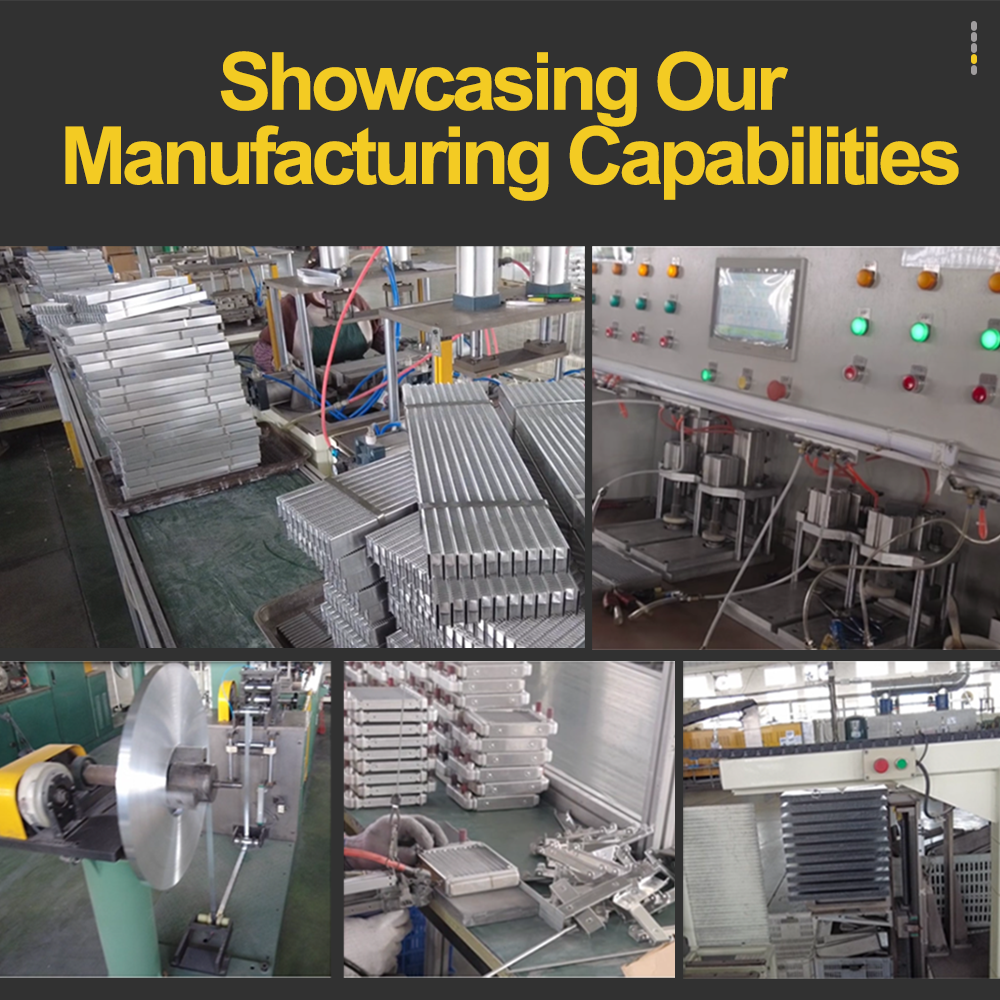

3. Advanced Manufacturing Processes: Vacuum Brazing & Skived Fin

We don't just manufacture hardware; we engineer internal architectures. Our two primary production technologies represent the pinnacle of liquid cooling manufacturing:

A. Aerospace-Grade Vacuum Brazing (Vacuum Welding)

Our vacuum brazed liquid cold plates are manufactured in a controlled high-vacuum environment.

• Metallurgical Bonding: Unlike standard soldering, vacuum brazing creates a 100% metallurgical bond between the base and the cover. This results in a single, integrated block with unmatched structural strength.
• Zero Internal Oxidation: The vacuum environment prevents oxidation during the bonding process, ensuring that internal micro-channels remain perfectly clean and free from blockages.
• High-Pressure Reliability: Our brazed plates are rated for high-pressure industrial environments (up to 10 Bar), providing a leak-proof guarantee for sensitive data center deployments.

B. Precision Skived Fin Technology

For applications requiring the absolute highest heat flux, we utilize Skived Fin Copper Heatsink technology.

• Zero Thermal Resistance: Fins are "peeled" directly from the solid copper base. Since there is no bonding layer between the fins and the plate, thermal resistance is effectively zero.
• High Density, Low Profile: Skiving allows us to achieve much higher fin densities than traditional extrusion or casting, maximizing the surface area for liquid-to-metal heat exchange within a compact footprint.

4. Technical Specifications & Parameters

To ensure our partners can accurately integrate our hardware, we maintain strict adherence to industrial tolerances:

5. Application Scenarios: Powering Global Innovation

Our bespoke liquid cooling solutions are deployed across the most demanding industries worldwide:

• AI & High-Performance Computing (HPC): Cooling for next-generation GPUs, TPUs, and high-density server racks. Our cold plates are essential for 24/7 AI model training and data processing.
• New Energy & Electric Vehicles (EV): Providing thermal management for EV battery packs, fast-charging station power modules, and onboard chargers (OBC).
• Medical Diagnostic Equipment: Precision temperature control for high-power MRI, CT scanners, and surgical laser systems where zero-leak reliability is mandatory.
• Industrial Lasers & Semiconductor: Managing the thermal flux of fiber lasers, CO2 laser heads, and semiconductor automated test equipment (ATE).

6. Competitive Advantage: The MANHICOOL Edge

When you choose MANHICOOL, you are partnering with a source manufacturer, not a distributor. This brings several distinct advantages:

1. Direct-from-Factory Value: By eliminating middlemen, we provide premium industrial liquid cooling hardware at a highly competitive price point.
2. DfM (Design for Manufacturing) Support: Our engineering team reviews your CAD/Step drawings to optimize flow paths, reducing both pressure drop and production costs.
3. Rapid Prototyping: We understand the speed of R&D. We move from your technical drawings to a physical, tested prototype in record time (3-7 days for standard custom blocks).
4. 100% Quality Assurance: Every single plate undergoes rigorous airtightness and pressure testing before leaving our ISO-certified facility.

7. FAQ: Everything You Need to Know About Copper Cold Plates

Q1: Can I provide my own CAD drawings for a custom design? A: Absolutely. We specialize in Custom on Demand services. Our engineers are proficient in working with Step, CAD, and PDF formats to transform your specific thermal requirements into high-precision hardware.

Q2: What is the benefit of Vacuum Brazing over traditional soldering? A: Vacuum brazing provides a much stronger metallurgical bond and ensures a zero-oxidation internal environment. This results in superior structural integrity, higher pressure resistance, and zero risk of micro-channel blockages over long-term use.

Q3: Do you support small batch orders or prototypes? A: Yes. We support our partners through the entire product lifecycle, from the initial rapid prototyping stage for R&D to large-scale mass production for industrial deployment.

Q4: How do you handle internal corrosion in copper water blocks? A: C1100 copper is naturally resistant to many coolants. However, we also provide professional surface finishes like Nickel Plating and internal cleaning processes to ensure the longest possible service life in industrial liquid loops.

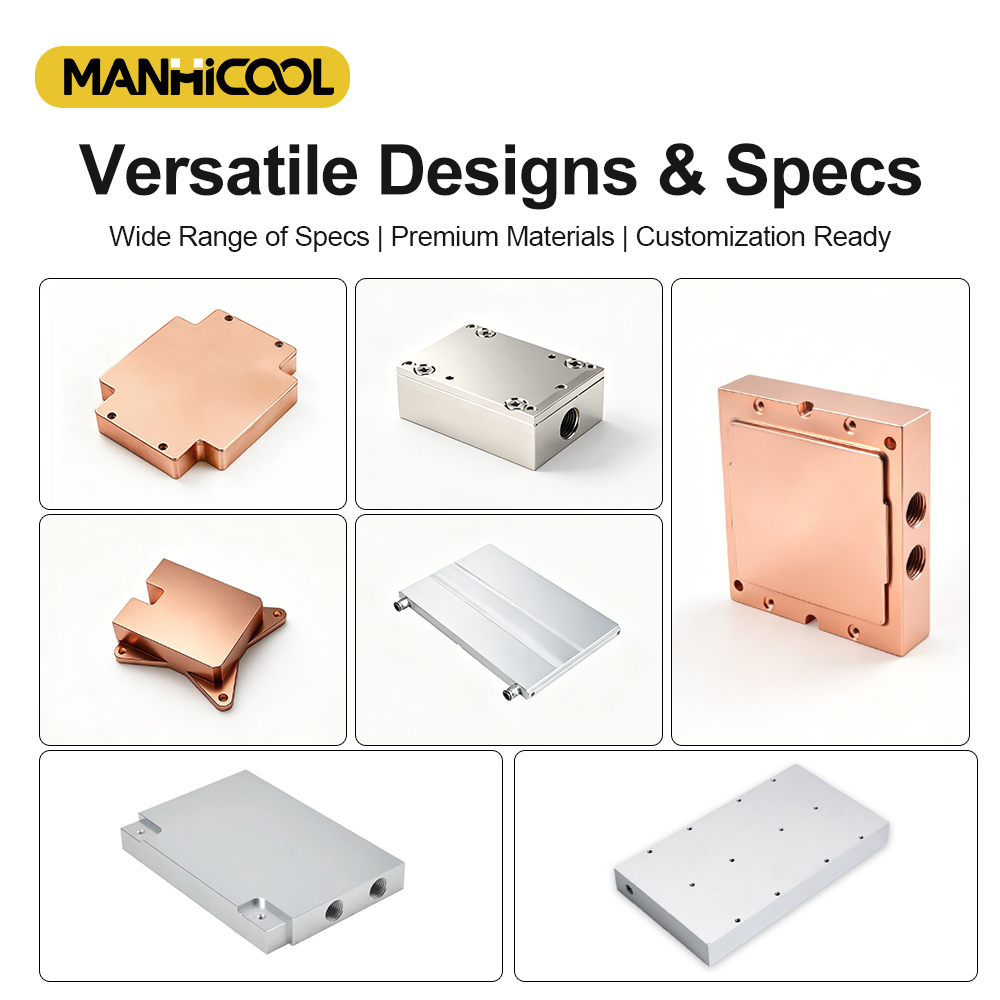

Q5: What is the maximum size cold plate you can manufacture? A: We have the CNC and vacuum brazing capacity to handle a wide range of sizes, from small 40mm components to large-format 160x160mm+ industrial plates. Please share your specific dimensions for a technical review.

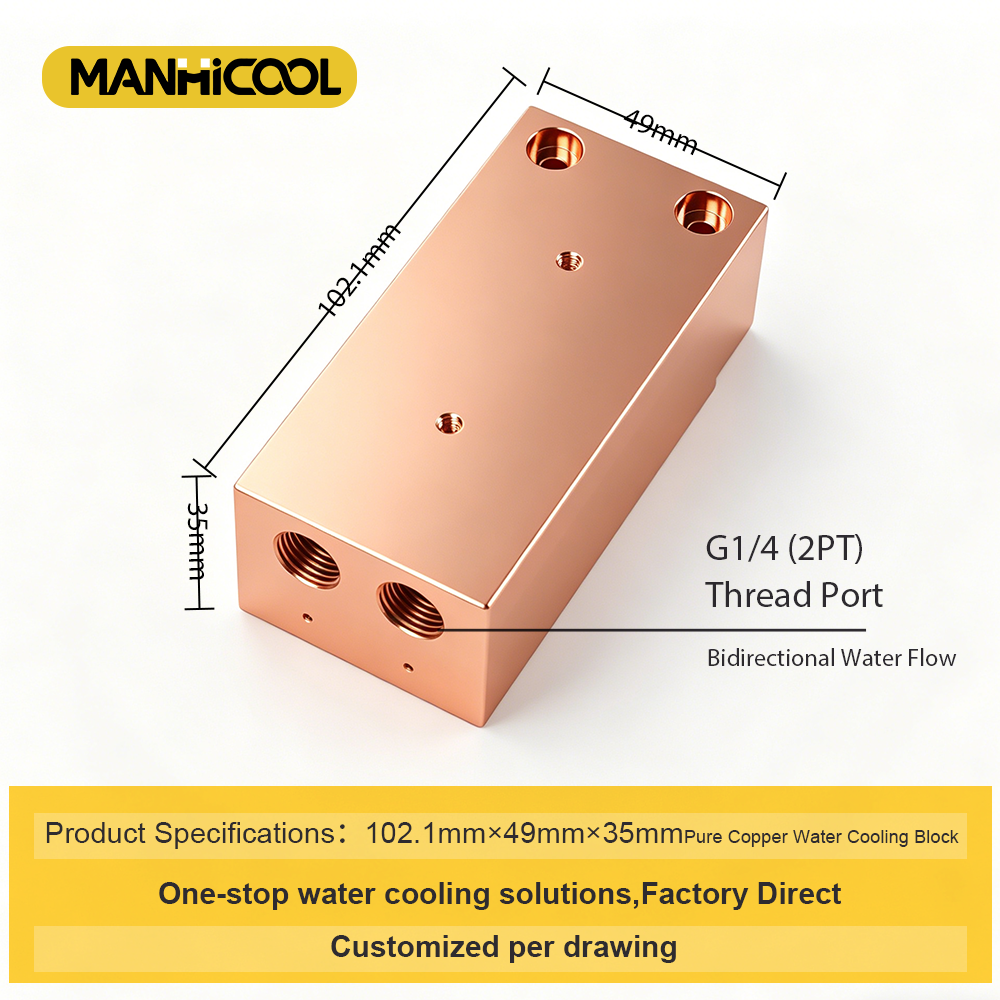

Q6: Are your products compatible with standard G1/4 or G1/8 fittings? A: Yes. We can machine precision threads (G1/4, G1/8, NPT, etc.) or provide custom barbed interfaces to ensure seamless integration into your existing liquid cooling loop.

8. Summary: Your Global Thermal Management Partner

At Hebei Manhang Machinery Equipment Co., Ltd., we are committed to pushing the boundaries of what is possible in thermal management. Our integrated copper water cooling plates are more than just components; they are engineered assets that ensure the reliability and longevity of your most valuable technology.

By combining the natural thermal superiority of red copper with aerospace-grade vacuum brazing, we provide the industrial world with a dependable path to cooling excellence. Our global logistics network ensures that whether you are in North America, Europe, or Asia, our bespoke thermal solutions reach your facility securely and on time.
